MD2000 MINE AND METAL DETECTOR
The MD2000 is a handheld metal detecting set can be deployed in support of
a wide range of operations; including EOD, IEDD, Search and Demining.. It
is particularly suitable for police search operations and is the preferred
metal detector of most UK police forces.MD2000 is the original multi-role,
man portable instrument for the detection of ferrous and non-ferrous
objects.
The MD2000 equipment in standard, full pack form is supplied with search
probes in addition to the conventional search halo. A short pack form may
be specified in which the probes are omitted. The equipment operates on
the pulse induction principle and is extremely versatile. Recent
substantial upgrades have improved still further the excellent
sensitivity, particularly to the minimum metal targets.
The MD2000 is very easy to operate, being completely automatic in
operation and requiring no tuning for differing ground condition. The
search heads can be operated immersed when in water with no adjustment.

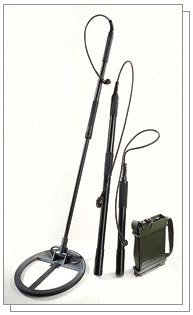

The full field pack is supplied comprehensively equipped with two search
probes, a search halo, loudspeaker and earpiece audio device, control unit
and battery pack, all housed in a cordura case.
A short pack option may be specified which is supplied with the search
halo only and is packed into a backpack style soft case. A transit case
may also be specified as an option.
The MD2000 can be operated on dry-cells or rechargeable batteries.
The MD2000 is NATO codified
(
NSN Z5-6665-99-967-3813 )
|
Technical Specifications |
|
|
Control Unit (Incorporating Batteries) |
|
|
Part number |
108.000 |
|
Dimensions: |
Length:
250mm |
|
Weight (inc. batteries): |
1.9Kg |
|
Controls: |
Boost
and normal switch. |
|
Connections: |
Two
sockets for captive caps for detection and audio devices. |
|
Electronics: |
One
single sided surface mounted electronic plug in module. |
|
Power |
|
|
Requirements: |
12-15
volts. |
|
Batteries: |
Rechargeable
SLA battery 12 volt 2.0 Ah or 20 x AA alkaline manganese. |
|
Battery life: |
R/C
battery, 10-30 hours. |
|
Soft Field Case |
|
|
Material: |
'Cordura'
with expanded polyurethane infill. |
|
Full pack: |
Incorporates
all probes |
|
Short pack: |
Incorporates
search halo only. |
|
Transit Case |
|
|
Hard Case : |
A
suitable transit case is available as an option |
|
Part number |
191.000 |
|
Dimensions: |
Length: 1050mm |
|
Transit Specifications (packed
without transit case) |
|
|
Full pack (part no. 112.000) |
1040mm
x 410mm x 80mm |
|
Short pack (part no. 113.000) |
1040mm
x 410mm x 80mm |
|
Detection Performance |
|
|
Search halo: |
Cartridge
case:
400mm |
|
Search probe: |
Cartridge
case: 190mm |
|
Status |
|
The
equipment is fully NATO codified and is in service with the British
Army and Police Forces and
other similar bodies world-wide. |
.
