EBEX--611 Hand Held Metal Detector
英文介紹網頁
本網頁所有之相片及內容均屬
德國 製造廠
尊重原著作權，僅限用於介紹該原廠製造之EBEX
-611金屬偵測器
|
|
|
|
|
A
rotary ON/OFF switch and
sensitivity adjuster is inside the rear end of the
handle |
北約組織合格軍用品編號 NATO Stock Number : NSN
6695-12-336-3096

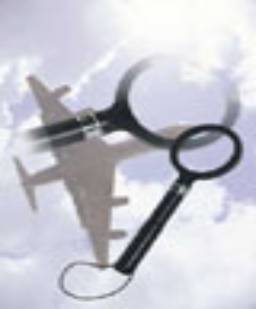

The EBEX® 611 hand-held metal detector is a
handy, tightly sealed unit. The unit is supplied with a ring-type
detector. The rotary ON/OFF switch is inset into the handle. Once the unit has
been switched on, adjustment is automatically initiated. Metal detection is
indicated by means of both optical and acoustic signals.
The device gives different alarms
for large and small metal targets.
Metal detection is indicated by means of
both optical and acoustic
signals.
The EBEX® 611 hand-held metal detector has no parts that can be
dismantled and runs on standard batteries or on NiMH batteries that have to be
removed for recharging.
|
TECHNICAL DATA
|
|
Power
supply |
9V
volt block (IEC 6f22 / 6LR61) or rechargeable Ni Cad battery |
|
|
Operating
time |
10-12
h continuous (dry batt.) |
|
|
|
25-30
h continuous (alkaline) |
|
|
Search
head |
D
145 mm |
|
|
Handle |
D
39 mm |
|
|
Length |
400
mm |
|
|
Weight |
approx
500 g |
|
|
Temperature
range |
-10°C
to +45°C |
|
|
Detection
ranges |
FE-ball D:3mm |
threshold |
|
|
(In
Air) |
metal
plate 5 x 5 cm |
30cm |
|
|
|
revolver
6.35
|
30cm |
|
|
|
metal
plate 10 x 10 cm |
40cm |
|
The EBEX 611 is a very sensitive, easily operated instrument
comprising of a "Halo" head attached to a metal handle which
contains the electronics module and the battery compartment. The handle is
covered with a soft synthetic material. A rotary ON/OFF switch and
sensitivity adjuster are fitted inside the rear end of the handle. After
being switched on the device auto-calibrated itself to its preset values and
can be tuned to the desired sensitivity. Target detection is transmitted by
audible and visual alarms.
Apart from the combined ON/OFF switch with sensitivity adjuster
the instrument has no external components that can be tampered with by
unskilled personnel.
Main Characteristics
- RUGGED AND RELIABLE
- AUDIBLE AND VISUAL ALARMS
- DYNAMIC / STATIC OPERATION
- LARGE AUDIO DYNAMICS
上述資料僅供參考，實際相關資料及測試數據，應以德國原廠出貨資料為準
